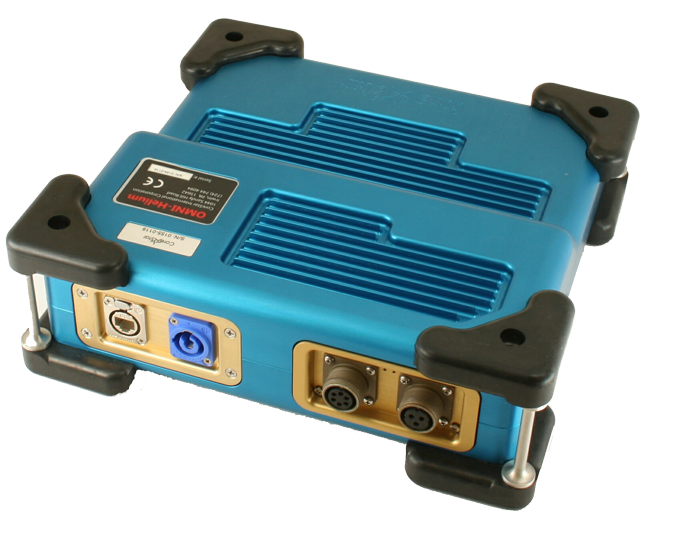

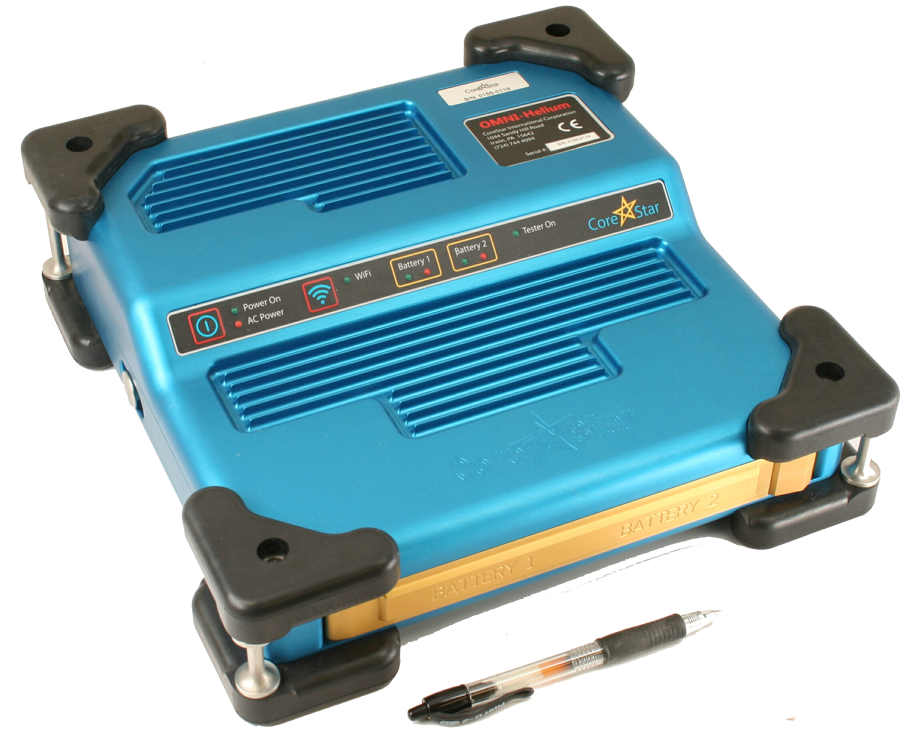

OMNI-200 Helium Eddy Current Tester

The OMNI-Helium is a fully functional OMNI-200 in a much more compact package which can be battery powered.

OMNI-200 Helium Specifications

Battery Power	Rechargeable LI-ON Type, Dual battery, Hot swappable, 8 hours per battery.
AC Power	100-250 VAC 50/60 Hz
Size	12 x 12 x 4 in 30.5 x 30.5 x 10.2 cm
Weight with Battery	11.4 lbs (5.2 kg)
Weight without Battery	9.4 lbs (4.3 kg)
Environmental	32 to 113°F (0 to 45°C) Operating Range, -4 to 158° (-20 to 70°C) Storage
Interface	10/100 Ethernet
Frequency Range	20 Hz to 5 MHz ET: 100Hz to 5 MHz RFT: 20Hz to 100 KHz
Drive Voltage	ET: 0 to 20 Vpp RFT: 0 to 60 Vpp (300ma Protected)
System Gain	-22 to 20 db Adjustable
Preamp Gain	0 to 700 Adjustable
Frequency Generators	4 Multiplexed or Simultaneous
Channel Capacity	Simultaneous Mode 32 Multiplexed Mode 128 Context Mode 512
Impedance Matching	Improves Range of Mismatched Coils
Hardware Null	Minimizes DC Offset in Multi-Coil Applications
Sampling Mode	Time Based 100 to 10,000 samples/sec Distance Based: English or Metric Selectable
Status and Diagnostic	Voltage and Temperature Monitoring (Software)

Standard System Contents

• OMNI-Helium with Bobbin Adapter
• Two LI-ION Rechargeable Batteries
• Battery Charger
• Power Cord
• Ground Strap
• Carry Strap
• Certificate of Calibration
• Shipping Case

Available Probe Adapters

• Differential/Absolute Bobbin
• High Voltage Remote Field (no preamp necessary)
• CoreStar Array: Full Length, Wand, Surface Scanning
• Zetec Array: X-Probe, CXB
• Air Conditioning: DC2/AC3
• Calibration (provides functionality to calibrate system in-house with additional equipment)
